If your smart thermostat is set up wrong, your heat pump can cool poorly, switch modes at the wrong time, or turn on backup heat too often. In West Florida, that also means more indoor stickiness, not just higher electric bills.
I’d boil this guide down to four things:
- Check compatibility first: system type, backup heat, and O/B setup all need to match.
- Confirm wiring before buying or installing: a C-wire is often needed for steady 24V power.
- Test heating, cooling, and fan right after install: even one wire in the wrong spot can cause trouble.
- Use settings that fit humid weather: longer cooling cycles and aux heat lockouts can help comfort and cut extra strip-heat use.
A few details matter more than most:
- Heat pumps often use terminals like R, C, Y, G, O/B, W/Aux, and E
- Many smart thermostats need a C-wire for Wi-Fi and display power
- Lowering or increasing the setpoint by 2–3°F is a simple way to test system response
- In humid Florida weather, longer run times usually remove more moisture than short on/off cycles
| What to check | Why it matters |
|---|---|
| System type | Single-stage, multi-stage, dual-fuel, and variable-speed setups do not all use the same thermostat logic |
| Backup heat | Electric strips and gas backup need different setup steps |
| C-wire | Many smart thermostats won’t run right without constant power |
| O/B setting | If this is wrong, cooling and heating can act backwards |
| Aux heat settings | Poor setup can make expensive backup heat run more than it should |
| Humidity-focused scheduling | Slow temperature changes often work better in West Florida than sharp setpoint swings |
Bottom line: I’d treat smart heat pump setup as part wiring check, part software setup, and part humidity control plan. If the match is right from the start, you’re more likely to get steady comfort, app control, and lower waste.

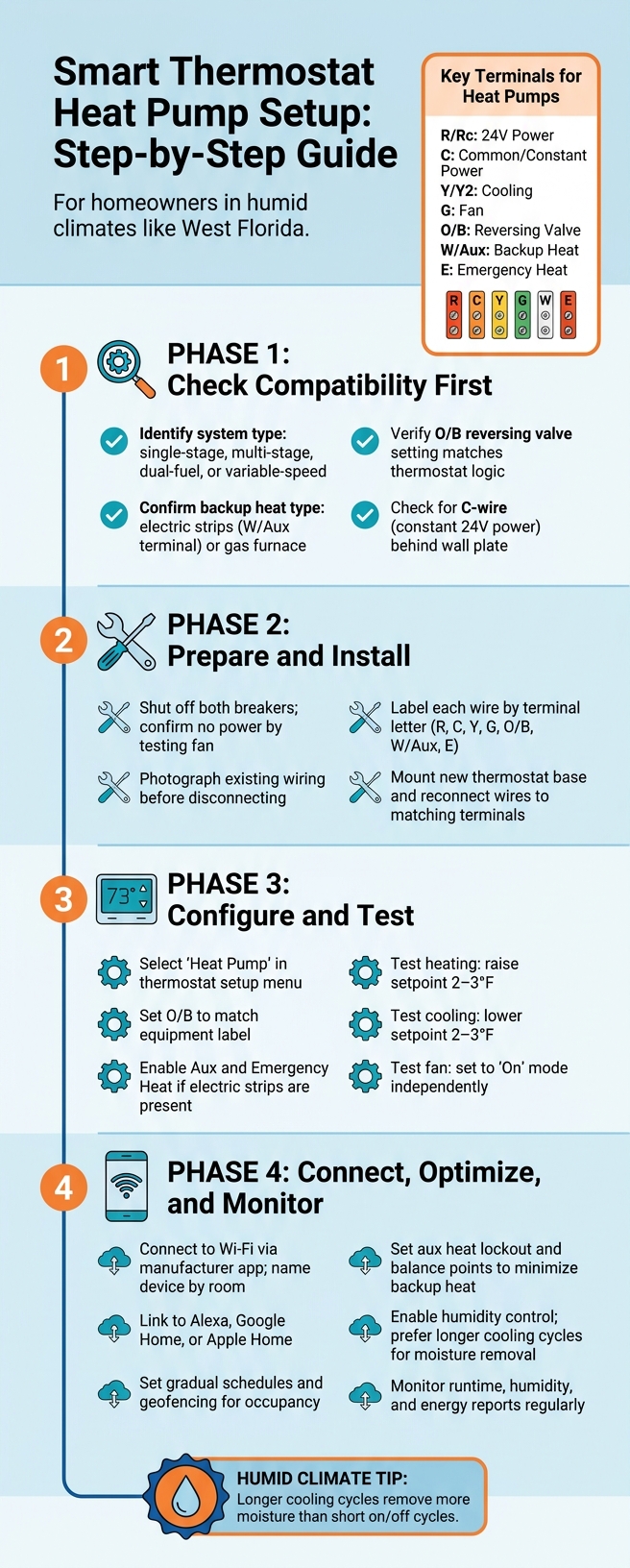

Smart Thermostat Heat Pump Setup: Step-by-Step Guide
Thermostat Setup for Heat Pump, Electric Furnace or Gas back up Auxiliary Emergency a heat
sbb-itb-ab7d5a1
Check Heat Pump and Smart Thermostat Compatibility First
A heat pump’s reversing valve and backup heat source decide whether a thermostat will work with the system. If they don’t match, you can end up with short cycling, no-cool calls, or even control board damage. Once you confirm compatibility, the wiring part is much easier.
Identify Your System Type and Backup Heat
Start by matching the thermostat to the type of system you have: single-stage, multi-stage, or dual-fuel. Backup heat matters too. Multi-stage and variable-speed systems may need thermostats made for that equipment so they keep their efficiency and humidity control.
Dual-fuel systems also need the right lockout temperature settings. Electric heat strips connect to the W/Aux terminal, while Emergency Heat runs the strips by themselves. If your backup heat comes from a gas furnace, it’s best to have a pro handle the setup.
Check 24V Wiring and C-Wire Availability
Before you buy a thermostat, take off your current thermostat faceplate and check the wires. Go by the terminal labels, not the wire colors, since colors can be misleading.
These are the terminals you’ll usually see on a heat pump system:
| Terminal | Function |
|---|---|
| R / Rc | 24V power |
| C | Common wire - constant power for smart thermostats |
| Y / Y2 | Cooling, Stage 1 and Stage 2 |
| G | Fan control |
| O / B | Reversing valve - switches between heating and cooling mode |
| W / Aux | Auxiliary heat (electric strips) |
| E | Emergency heat |
The C-wire is the main power source many smart thermostats use for steady 24V power, including Wi-Fi and the display. No wire on the C terminal? Look behind the wall plate first. Sometimes there’s an unused wire tucked into the wall. If there isn’t one, you may need a C-wire adapter or pro wiring help.
Take a clear photo of your existing wiring before disconnecting anything.
That one step can save you a lot of hassle later.
Choose Between DIY Setup and Professional Installation
DIY can work fine for a simple single-stage system with a C-wire. But advanced, dual-fuel, zoned, or communicating systems usually need pro setup. One of the most common mistakes is the O/B setting. Get that wrong, and the heat pump may blow hot air when you’re trying to cool the house.
For more advanced systems, West Florida Air Conditioning & Heating Inc. can check compatibility and set up the thermostat correctly. After that, you can move on to shutting off power, labeling wires, and mounting the new thermostat.
Prepare the System and Install the Smart Thermostat
Shut Off Power and Label Existing Wiring
Once you've confirmed the system is compatible, it's time to install the thermostat.
Start by turning off both breakers. Then make sure the system has no power by switching the thermostat fan setting up. If the fan doesn't come on, you're good to go.
Use the wire labels and the photo from the compatibility check so you don't mix anything up. Remove the old thermostat faceplate, label each wire with its terminal letter, and tape the wires to the wall opening so they don't slip back inside.
This part matters: don't guess with low-voltage wiring. Match every wire to the photo before you reconnect anything.
Mount the Thermostat Base and Connect Heat Pump Wires
Mount the new thermostat base on the wall. Then reconnect each labeled wire to the matching terminal shown in your photo.
Take it slow here. One wire in the wrong terminal can throw off the whole system.
Configure Equipment Settings and Run a Basic Test
Turn the power back on and choose Heat Pump in the thermostat setup menu. Set O/B to match the equipment label. If your system uses electric heat strips, enable the auxiliary and emergency heat settings.
Then run a basic test:
- Raise the setpoint by 2–3°F to test heating
- Lower the setpoint by 2–3°F to test cooling
- Set the fan to On to make sure it runs by itself
If any mode doesn't work, shut the power off again and compare the wiring to your photo.
Once everything checks out, move on to the Wi-Fi and app connection.
Connect the Thermostat to Wi-Fi and Your Smart Home Platform
Complete Wi-Fi and App Setup
After the basic test passes, it’s time to get the thermostat online. Open the manufacturer’s app and follow the in-app pairing steps to connect the thermostat to your home Wi-Fi network .
As you set things up, name each device by location, like "Living Room" or "Office." It sounds small, but it makes remote checks much easier. It also helps voice commands work the way you expect instead of turning into a guessing game later.
Then test control from somewhere else in the house, or switch to cellular data and change the setpoint from your phone. If the system responds, you’re in good shape. If pairing fails, check that the thermostat has power before trying again.
Link Alexa, Google Home, or Apple Home
Once the thermostat is online, connect it to your smart home platform. Open the matching app, sign in with your manufacturer account, and follow the linking steps. After that, you can control the thermostat with voice commands and routines.
Routines are where this gets handy. You can tie HVAC changes to lights, locks, or away mode so the system doesn’t run when it doesn’t need to.
Handle Zoned or Multi-Room Systems
If your home uses multiple thermostats or a zone panel, choose the zoning-specific setup path. These systems often need panel-specific wiring and relay setup.
For homeowners in Pasco, Pinellas, or Hernando County, zoned or multi-room setups are a strong reason to call a pro. West Florida Air Conditioning & Heating Inc. offers smart thermostat setup and zone control installation.
Adjust Settings for Comfort, Humidity, and Lower Energy Bills
Once the thermostat is online, the next step is dialing in the settings for comfort, humidity control, and lower power use.
Use Schedules, Geofencing, and Occupancy Features Correctly
Use gradual schedule changes so the compressor runs long enough to pull moisture from the air and avoid extra backup heat. If you turn on geofencing or occupancy-based schedules, let the temperature drift a bit while the house is empty, then bring it back slowly when you return.
In West Florida, longer cooling cycles tend to work better because they remove more moisture from the air.
That matters because better comfort isn't just about temperature. It also comes down to using the right heat pump settings.
Set Heat Pump-Specific Efficiency Options
Set aux heat lockout and balance points to delay backup heat as much as possible. Smart thermostats can do a solid job managing humidity when the system is set up the right way, but they can't fix every moisture issue by themselves.
Variable-speed systems usually handle dehumidification better because they run longer at lower speeds instead of cycling on and off.
Start with these settings and features first:
| Feature | Comfort Impact | Energy-Saving Value |
|---|---|---|
| Scheduling/Geofencing | Moderate: adjusts for occupancy automatically | High: reduces unnecessary runtime when away |
| Heat Pump/Aux Heat Control | Moderate: helps avoid unnecessary backup heat | High: reduces use of expensive resistance heat |
| Humidity Control | High: targets sticky air directly | Moderate: optimizes runtime for comfort, not just temperature |
| Variable-Speed Operation | High: superior dehumidification and consistent temperatures | High: more efficient than on/off cycles |
| Zoning | High: allows different temperatures for different rooms | High: reduces energy waste in unused areas |
Conclusion: Correct Setup and Ongoing Monitoring
After setup, keep an eye on runtime, humidity, and energy reports. Short cycling, high utility bills, or rooms that feel cool but still clammy can point to early trouble, like a clogged filter or low refrigerant.
It also helps to schedule tune-ups twice a year so the system keeps working the way it should. For homeowners and small businesses in Pasco, Pinellas, and Hernando counties, West Florida Air Conditioning & Heating Inc. handles smart thermostat setup, heat pump service, and ongoing maintenance to keep systems running efficiently year-round.
FAQs
How do I know if my thermostat is compatible with my heat pump?
Turn off power at the breaker first. Then remove the thermostat faceplate and inspect the wiring. If you see a wire connected to the O, B, or O/B terminal, that usually means you have a heat pump. You should also make sure your system uses 24V low-voltage power.
Next, run your wire labels through the manufacturer’s compatibility checker. Your new thermostat also needs support for Aux and E terminals. If you want a second set of eyes, West Florida Air Conditioning & Heating Inc. can confirm compatibility and take care of the installation.
What if my system doesn’t have a C-wire?
If your system doesn’t have a C-wire, start with a quick check behind the thermostat faceplate. In many homes, an unused blue or black wire is tucked back there. You can also look at the HVAC control board in the air handler to see if there’s a connection at the C terminal.
If there’s no extra wire to use, you still have a few solid options:
- Install a C-wire adapter
- Run a new wire bundle
- Choose a thermostat that doesn’t need a C-wire
West Florida Air Conditioning & Heating Inc. can help with smart thermostat setup.
Why does my house still feel humid after setup?
A smart thermostat by itself usually won’t solve humidity problems. If humidity keeps hanging around, the cause is often deeper in the HVAC system, not the thermostat.
Common issues include:
- Incorrect system sizing
- Short cycling
- Poor airflow
- Duct leakage
- Dirty coils
If the system is oversized, it can cool the home too fast and shut off before it has time to pull enough moisture from the air. That means the temperature may look fine, but the house can still feel damp and sticky.
Regular maintenance helps. It also makes sense to check the ductwork, drain performance, and airflow to see where things are going wrong. In Pasco, Pinellas, or Hernando, West Florida Air Conditioning & Heating Inc. can help diagnose the cause.
