Ultimate Guide to Duct Layout Optimization

By
13 min read
Ultimate Guide to Duct Layout Optimization

Bad duct layout can waste 20% to 30% of cooling output and push static pressure past the blower’s limit. If I want a duct system to cool each room well in a Florida home, I need to start with Manual J loads, turn them into CFM targets with Manual D, keep runs short, size returns right, seal leaks, and verify the system in the field.

Here’s the plain-English version:

  • Room loads come first. Cooling needs are set in BTU/h, then converted to room airflow in CFM.
  • Static pressure matters. Most residential systems are rated for about 0.5 in. w.c. max.
  • Returns are often the weak spot. A door undercut only moves about 15–20 CFM, while many bedrooms need 75–100 CFM.
  • Flex duct can hurt airflow if it sags, kinks, or bends too hard. One bad run can cut airflow by 25% to 50%.
  • Attic heat in West Florida is brutal. Ducts in 130°F to 145°F attics lose cooling fast.
  • Leakage costs money. Duct leakage above 15% can drive cooling use up by 20% to 30%.
  • Retrofits do not always mean full replacement. In many homes, one new branch, one return path, or duct sealing can fix the main issue for far less than a full $4,500–$9,000 replacement.

A few layout choices drive most of the outcome:

  • Trunk-and-branch setups usually have lower resistance.
  • Home-run layouts are easier to install in tight attic spaces.
  • Sheet metal trunks + short flex branches are often a strong mix for airflow and install cost.
  • Post-install testing should confirm room airflow, leakage, and TESP against design targets.

If I had to boil the whole article down to one line, it would be this: good duct layout is not about adding more tonnage - it is about getting the right CFM to each room with low resistance, low leakage, and a return path that works when doors are closed.

Easy Way to Design Duct for HVAC System (Sizing & Layout)

Quick Comparison

Topic Key point Numbers to watch
Load and sizing Start with Manual J, then Manual D BTU/h, CFM
Static pressure Keep blower resistance under control Around 0.5 in. w.c. max
Velocity Too high gets noisy; too low hurts mixing 700–900 FPM trunks, 600 FPM or less branches
Return airflow Closed rooms need a real return path 15–20 CFM undercut vs. 75–100 CFM bedroom need
Flex duct Poor installation adds drag fast 20%–40% more friction than smooth metal
Leakage Air loss hits comfort and bills Over 15% leakage can add 20%–30% cooling use
Field checks Test, do not guess Airflow within ±10%, leakage ≤ 4 CFM25 per 100 sq. ft.

The rest of the article explains how I would plan, route, choose materials for, and test a duct system so it works in a hot, humid Florida attic - not just on paper.

Design Basics: Loads, Airflow, and Pressure

Manual J Room Loads and Manual D Airflow Targets

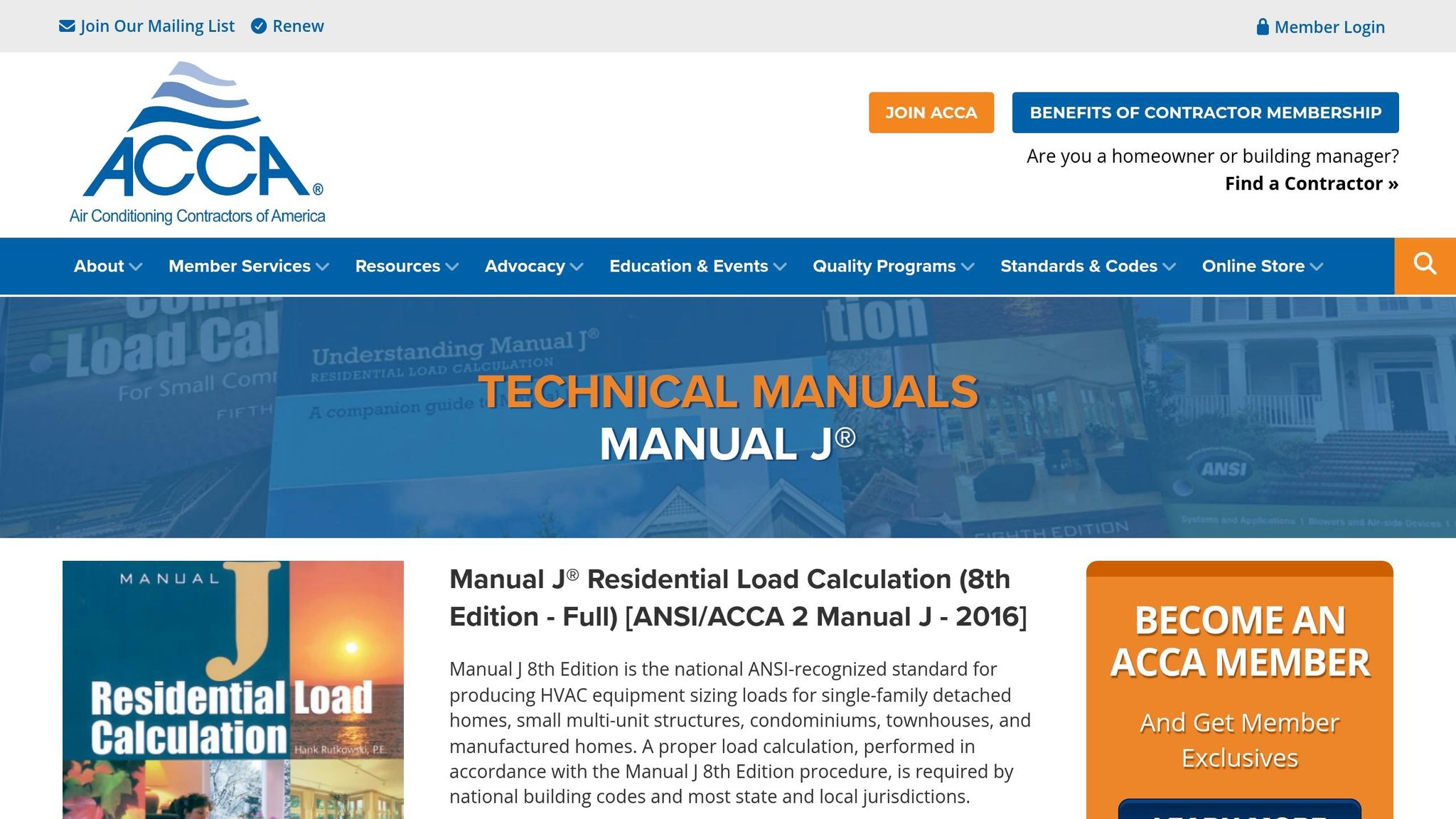

Manual J

Duct layout starts with Manual J and Manual D.

Manual J figures out how much heating or cooling each room needs in BTU/h. It uses things like insulation levels, window orientation, ceiling height, and internal heat sources. Manual D takes those room-by-room load numbers and turns them into target airflow in CFM for each supply branch and return path. From there, those targets shape branch sizing, trunk length, and the return path.

The math also needs to cover both sensible load and latent load. Sensible load changes temperature. Latent load changes moisture. In Florida homes, that distinction shows up fast because humidity punishes bad airflow. An oversized system can short-cycle and fail to control humidity well.

Friction Rate, Velocity, and Static Pressure

Once the target CFM is set, the duct system still has to move that air without choking the blower. Three numbers matter here: friction rate, velocity, and Total External Static Pressure (TESP).

TESP is the total resistance the blower has to push against. Most residential systems are rated for a maximum of 0.5 in. w.c. Friction rate tells you the pressure drop per 100 feet of equivalent duct length, based on the static pressure left over after filter, coil, and grille losses. And every fitting - elbows, tees, and boots - adds equivalent length to the run.

Velocity is the speed of air in the duct, measured in feet per minute (FPM). Push velocity too high and noise goes up. Let it fall too low and air mixing gets weak, which can lead to stratification. A good working target is 700–900 FPM in main trunks and 600 FPM or less in branch runs.

Round Duct Diameter Approx. CFM at 0.1 in. w.c./100 ft Typical Use
6 in. ~100 CFM Small bedroom supply
8 in. ~200 CFM Medium room supply
10 in. ~350–400 CFM Large room or short trunk
12 in. ~600 CFM Main trunk or large return
14 in. ~850–900 CFM Main return for 2–3 ton system
16 in. ~1,200 CFM Main return for 3–4 ton system

(Source:)

One field example shows how fast pressure drop can eat into system output. In a May 2025 Pasco County case study, a 2,400 sq. ft. home started with an original layout measuring 0.86 in. w.c. After two trunks were upsized, a 12-inch return plenum and jumper duct to the master suite were added, and flex elbows were swapped for radius sheet-metal elbows, TESP fell to 0.46 in. w.c. Room-by-room airflow ended up within 3% of design targets, and the home used 17% less kWh than similar nearby homes.

Supply and Return Balance by Room

Return capacity needs to keep up with supply airflow. If a room doesn't have a clear, low-resistance return path, it starts to pressurize. Then supply airflow slows down, conditioned air gets pushed out through the building envelope, and hot, humid attic air gets pulled in. Poor return paths also drive static pressure up and hurt dehumidification.

A door undercut usually moves only 15–20 CFM. That's nowhere near a bedroom's usual 75–100 CFM return need. So a closed bedroom often needs a dedicated return grille, a jump duct, or a transfer grille.

A common target is an even static split: about 0.25 in. w.c. on the supply side and 0.25 in. w.c. on the return side. That helps the blower stay in a better operating range and keeps the return side from turning into the weak point.

With the load numbers and pressure targets in place, the next move is picking the layout that hits those numbers with the least resistance.

Layout Options and Routing Rules

Once you’ve set room loads and pressure targets, the next move is the duct layout. This is where the plan either keeps airflow moving cleanly or starts piling on resistance.

Trunk-and-Branch vs. Home-Run Layouts

Most residential duct systems use one of two layouts: trunk-and-branch or home-run (radial). That choice shapes airflow balance, static pressure, and how hard the system is to install.

A trunk-and-branch system uses one large main trunk, often made from rigid sheet metal or duct board, with smaller branches feeding each room. A home-run, or radial, system sends individual branch ducts, usually flex duct, from a central supply plenum or manifold straight to each register.

In Florida, home-run layouts are common. The reason is simple: flex duct is easier to snake through tight truss spaces, and it installs 3–4x faster than rigid duct.

But there’s a catch. Flex duct has a corrugated inner surface, which means more drag as air moves through it. When it’s installed with bends and sags, friction losses can run 20–40% higher than smooth sheet metal. Trunk-and-branch systems cost more at the start, but they usually deliver lower static pressure and steadier airflow over time.

Feature Trunk-and-Branch Home-Run (Radial)
Balancing Requires dampers at branch takeoffs Easier when run lengths are similar
Static Pressure Lower Higher
Zoning Fit Excellent for multi-zone setups Good for individual room control
Retrofit Difficulty High; requires significant space Lower; easier to route through tight spaces
Typical Use Case Larger or multi-story homes Homes with tight attic framing and short, direct runs

Routing for Shorter Runs and Lower Resistance

Duct routing matters more than many people think. A system can look fine on paper and still struggle if the runs are too long or packed with turns.

Placing the air handler near the center of the home, when possible, helps shorten duct runs. That kind of placement can cut total duct length by up to 50%. Shorter runs mean less surface area that can leak and less duct sitting in a hot Florida attic.

Fittings add up too. Every elbow, tee, and offset adds equivalent length and eats into the static pressure available to move air. Radius elbows help more than sharp 90-degree turns because they keep pressure drop from climbing too fast.

With flex duct, installation quality matters a lot. Pull it tight to its full length, support it every 4 to 5 feet, and avoid hard bends or sagging sections. A kinked run can lose 25% to 50% of its rated airflow. That’s a huge hit from one sloppy stretch of duct.

A common rule of thumb is to use rigid sheet metal for trunks and save flex duct for the last branch runs. That keeps the high-airflow parts of the system smoother and cuts resistance where it matters most.

Zoning, Dampers, and Service Access

Zoning splits the home into separate areas, each with its own temperature control. It sounds simple, but the duct layout gets more complicated fast.

The big issue is static pressure when zones close. If one zone shuts its dampers, the open zones take on more system pressure. That can strain the blower and increase leakage at duct joints. Because of that, motorized dampers need to be placed where they can be inspected and serviced. The same goes for any bypass dampers.

Feature Single-Zone Zoned Layout
Design Complexity Low High; requires bypass or variable-speed planning
Control Benefits One setting for the whole house Independent temperature control by area
Duct Routing Needs Simple, direct paths Separate duct paths per zone with damper space
Maintenance Access Minimal High; motorized dampers need regular inspection

Balancing dampers should go at the branch takeoffs, not at the register face. Putting them at the register can create noise and makes fine-tuning harder.

Each bedroom also needs a clear return-air path. That can be a dedicated return grille, a jumper duct, or a transfer grille. Without one, closing the door can pressurize the room and choke off supply airflow.

Those routing choices set up the material and retrofit trade-offs in the next section.

Materials, Cost, and Retrofit Planning

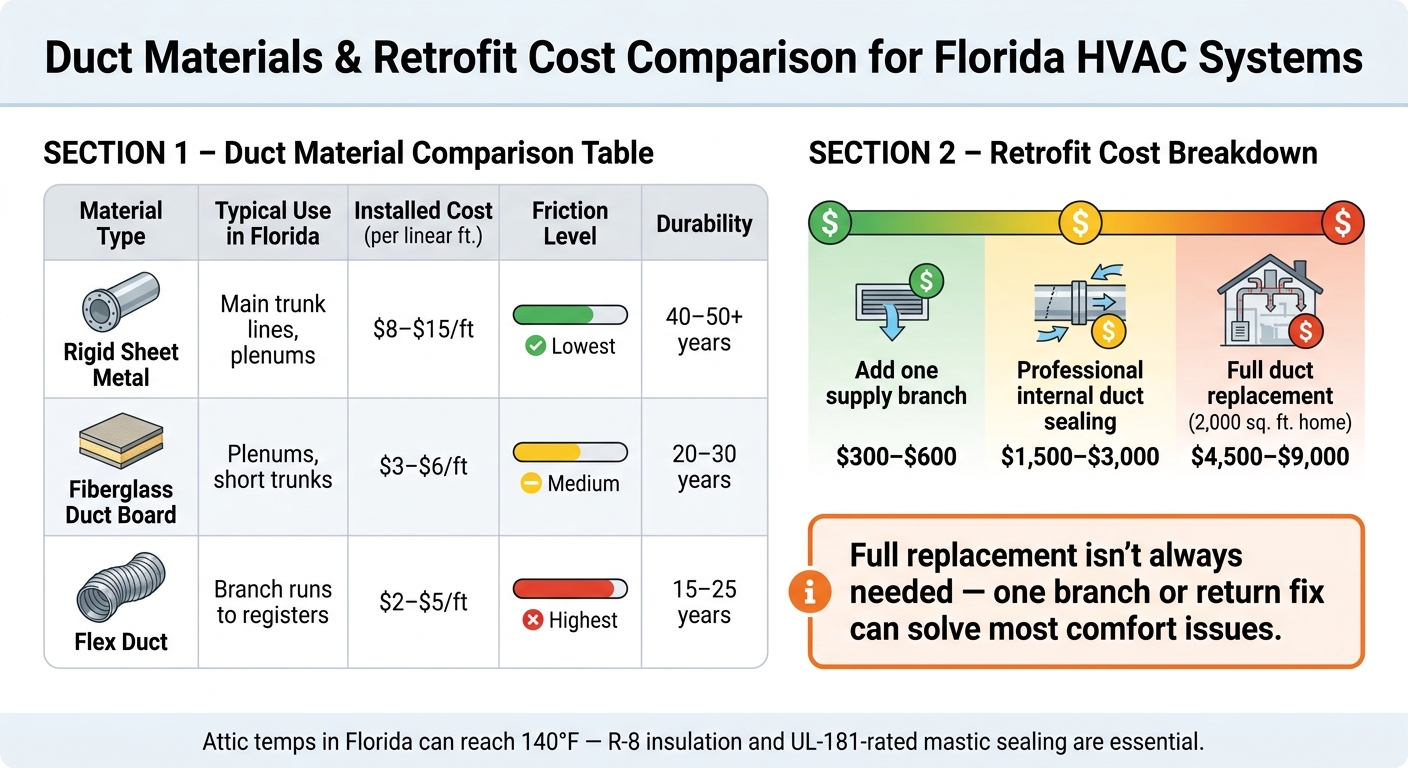

Duct Layout Materials & Costs: Florida HVAC Guide

Duct Layout Materials & Costs: Florida HVAC Guide

Sheet Metal, Flex Duct, and Other Common Materials

Every duct material has trade-offs. Friction, lifespan, insulation, and install price all shape how the system performs over the years.

Material Type Typical Use in Florida Installed Cost (per linear ft.) Friction Level Durability
Rigid Sheet Metal Main trunk lines, plenums $8–$15 Lowest 40–50+ years
Fiberglass Duct Board Plenums, short trunks $3–$6 Medium 20–30 years
Flex Duct Branch runs to registers $2–$5 Highest 15–25 years

These ranges reflect typical Florida pricing and service life.

In Florida, attic temperatures can hit 140°F. That kind of heat is hard on ductwork, so R-8 insulation and airtight sealing matter. All joints should be sealed with UL-181-rated mastic or foil tape, not standard cloth-backed duct tape. That old-school tape tends to fail when it sits in high heat for long periods.

In many homes, a hybrid setup makes the most sense: sheet metal for the main trunks, with short, tight flex runs for branch lines. It usually gives you a better mix of cost control and solid airflow.

Those material choices shape both the up-front price and how well the system holds up later.

How Better Layouts Lower Costs Over Time

Once the layout is in place, the payoff shows up in lower pressure, fewer leaks, and less strain on the equipment. Poor duct systems can lose 20–30% of conditioned air. That’s a big hit.

High static pressure also makes the blower motor work harder. When that happens, it uses more electricity and tends to wear out sooner. In Florida’s humid climate, bad airflow creates another problem: the evaporator coil removes less moisture. The result can be a home that feels damp and sticky, with a higher risk of mold.

Fixing these issues on paper is usually much cheaper than trying to solve comfort problems after the house is already in use.

New Construction vs. Existing Home Retrofits

The same layout rules still apply, but retrofits come with more limits. In new construction, trunks can be sized right from day one, and return paths can be built into the framing before drywall goes up. In an existing home, you’re working around finished surfaces, tight framing, and whatever access the house gives you.

Full duct replacement isn’t always needed. If the current duct system is less than 15–20 years old and the AC tonnage hasn’t changed, spot fixes often make more sense than tearing everything out. On a 2,000 sq. ft. home, a full duct replacement usually costs $4,500–$9,000. By comparison, adding one supply branch typically costs $300–$600, and professional internal duct sealing usually runs $1,500–$3,000.

Sometimes the fix is much smaller than people expect. One restrictive branch, or a missing return path, can be the whole reason a room stays hot.

Common Mistakes, Field Checks, and Final Takeaways

Once the layout is mapped out, the last job is spotting the problems that only show up after the system is in place.

Layout Mistakes That Hurt Comfort and Efficiency

The most common duct-layout problem in Florida homes is an undersized return duct. When the return is too small, static pressure goes up, dehumidification drops, and the blower has to work harder. The result is familiar: rooms feel warm and sticky, and the system may short-cycle before it pulls enough moisture from the air.

Long flex runs, kinks, and sags are another big problem. They can cut airflow by 25% to 50%. And a sharp 90-degree elbow adds a lot of equivalent length and resistance. If the layout gives you the option, use gradual radius elbows or 45-degree wyes instead.

A 4-ton system connected to ductwork sized for 3 tons is asking for trouble. That mismatch can lead to high static pressure, noisy registers, and early equipment failure.

Post-Installation Checks That Confirm Performance

It’s not enough to spot these issues on paper. You need to test the system against the design targets. That’s how you know the layout is doing its job.

Test Tool Target
Room airflow Flow hood (balometer) Within ±10% of Manual D design CFM
Total External Static Pressure Manometer Verify TESP is within design limits
Leakage Duct Blaster ≤ 4 CFM25 per 100 sq. ft. of conditioned floor area (FL Code)

A room that stays 5–10°F warmer than the setpoint usually points to supply imbalance or leakage. Whistling at a register is another clue. In most cases, air velocity is too high, which often means the duct serving that room is undersized. If the system short-cycles or can’t dehumidify well, check for a restricted return path or high static pressure.

Check the filter before testing.

Conclusion: Key Rules

The last check is simple: make sure the layout works in the house, not just in the plan.

Start with Manual J. Size with Manual D. Keep runs short and smooth. Build matched returns into the first design instead of tacking them on later. Then verify performance in the field.

In West Florida homes, where attics can hit 140°F in summer, these choices affect comfort and monthly energy bills in a very direct way. West Florida Air Conditioning & Heating Inc. serves Pasco, Pinellas, and Hernando counties and can assess your duct layout against actual design targets.

FAQs

How do I know if my duct layout is the problem?

Common signs include:

  • Hot and cold spots between rooms
  • Noisy grilles or whistling
  • Weak airflow at certain vents
  • A clammy feel indoors
  • Crushed, kinked, or sagging ducts

If you’re noticing some of these problems, there’s a good chance the ductwork is part of the issue. West Florida Air Conditioning & Heating Inc. can check static pressure and airflow to confirm what’s going on.

Is fixing ductwork cheaper than replacing the whole system?

Usually, yes - if the damage is limited to one or two sections. In that case, a targeted ductwork repair often makes sense, and it typically costs $279 to $800.

Replacement tends to make more sense when the system is more than 15 years old, has pest damage in multiple areas, chronic air leaks, or a layout that was poorly designed or undersized from the start. West Florida Air Conditioning & Heating Inc. can help you figure out which option fits your system.

What tests should be done after ductwork changes?

After ductwork changes, test for duct leakage, airflow, and static pressure.

  • Run a post-installation duct leakage test to make sure leakage stays within the Florida Energy Code limit of 4 CFM25 per 100 square feet of conditioned floor area.
  • Measure airflow at each register, then balance the system so every room gets its design CFM.
  • Check total external static pressure and compare it with the manufacturer’s specs.
